About this item

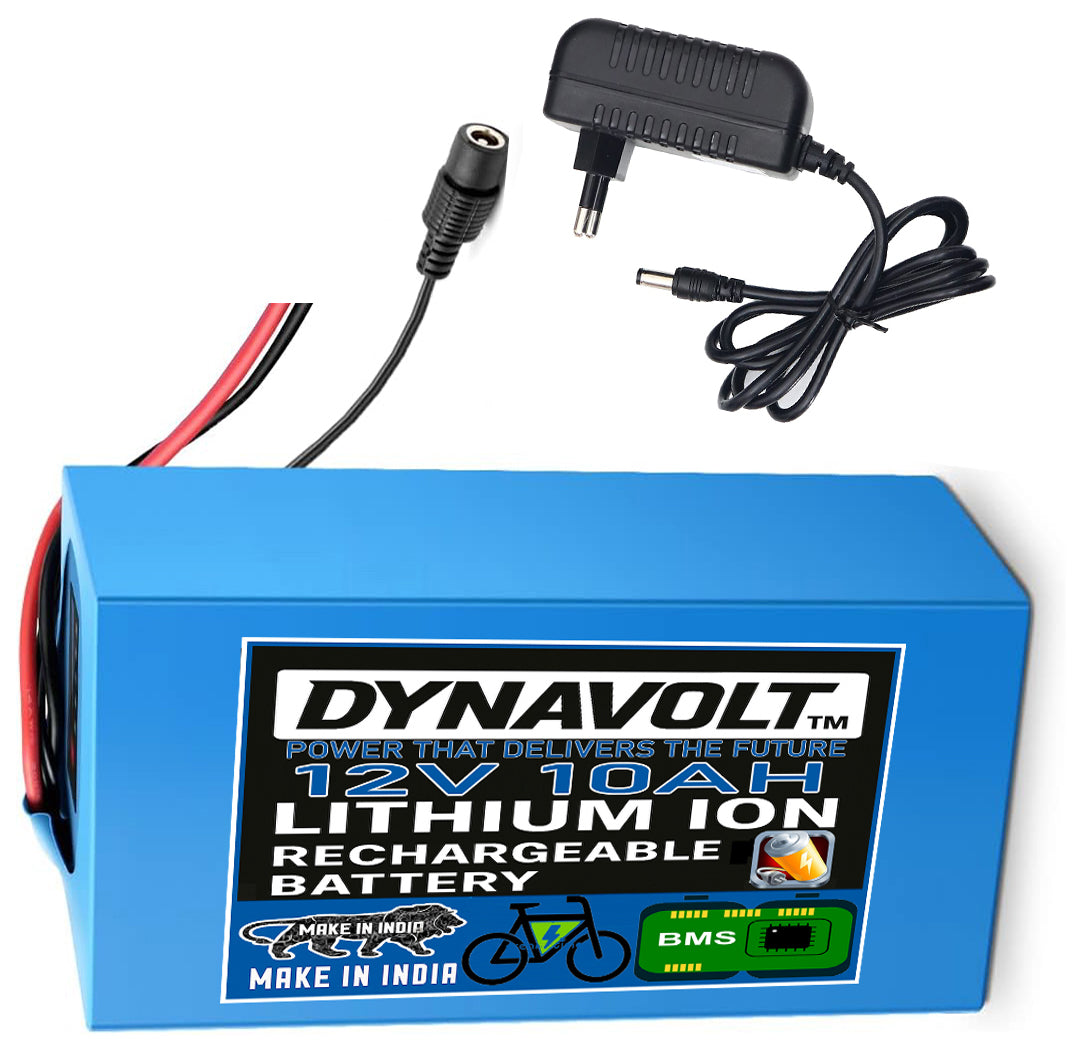

• 100% New Genuine BIS Approved Actual Capacity Battery

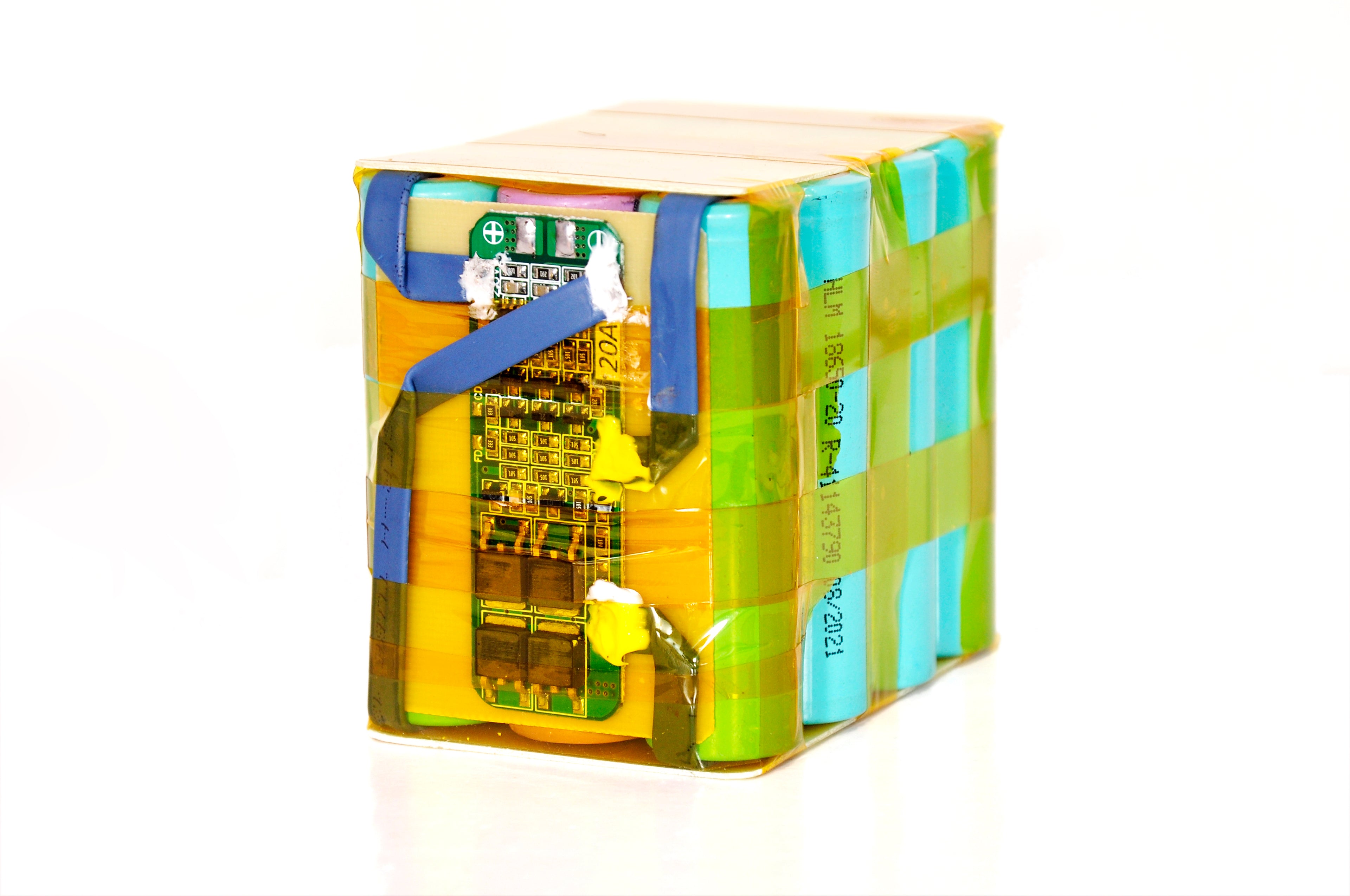

• 3S 5P Configuration High capacity, small size, light weight
• Meets to all safety norms for handling, can be used as UPS for CCTV camera DVR etc.

Battery: 18650 12.6v Battery pack Capacity: As per selection Battery Type: Rechargeable Li-on battery. Input Voltage: 12.6 V Output voltage: 11.1 - 12.6v DC Output Current: About 1-3A Product's life: charge and discharge circulation over 1000 Basic Information - Cell count: 24 - Cell type: 18650 - Configuration: 3 sets in series 8 sets in parallel(3S1P) Built-in BMS protection,With overcharge, over discharge, short circuit protection - Pack: Brick,Blue PVC - Width: 20mm - Height: 68mm - Length: 55mm * Manual measurement, there will be deviations. Energy - Nominal Voltage: 11.1V - Output Voltage Range: 11.1v - 12.6 by test conditions (eg, temperature, wire loss, test equipment, test parameters, etc.), please perform multiple tests and take the average of the results to reduce the deviation. At a temperature of 25 ° C, the deviation between the pure resistance discharge test result and the nominal data is controlled within ±10%, which is normal. Charging - Charge mode: CC CV - Use a S Lithium-ion battery dedicated charger to charge up to 12.6v - Charge current 2A max Discharge - Continuous discharge current 10A - Instantaneous discharge current 20A
